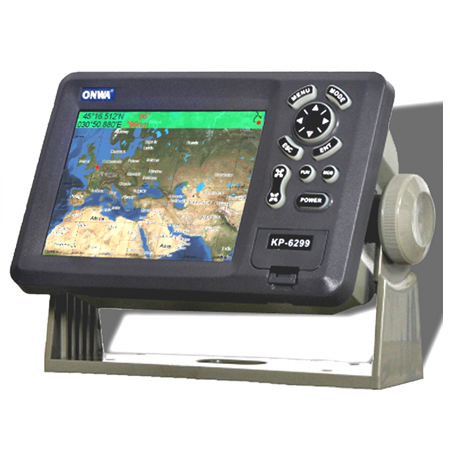

GPS Plotter KP-6299i including Antenna in the Display

PLOTTER CHARACTERISTICS

1. Waypoints/icons

15,000 waypoints with name, symbol, 10 proximity waypoint

2. Routes

waypoint up to 200 points each, plus MOB and Track Navigation or Goto Track modes

3. Tracks

30,000 point automatic track log; 15 saved track (up to 2000 track points each) let you retrace your path in both directions

4. Alarms

XTE, Anchor drag, arrival, speed, voltage, proximity waypoint and time, AIS alarm.

5. Pallete

Normal

Daylight exposed to sunlight

Night in dark environment

NOAA paperchart colors

6. Tides

Tide data

7. Projection

Mercator projection

8. Position format

Lat/Lon

9. Basemap

Built-in Onwa K-Chart

10. External Map

SD Cards slot for C-Map MAX

11. User data storage

Internal backup of user settings, or external SD-card

12. Plot Interval

1s to 99h or 0.01 nm to 9.99nm

13. Plotting scales

0.01nm to 1,000nm

14. Nav Data

Inputs:



$–DBT, $–DPT, $–GGA, $–GLL,$–GSA, $–GSV,

$–HDG,$–HDM,$–HDT,$–MTW, $–RMB,$–RMC,

$–VTG, $–ZDA, $–VWR,$–VWT,$–MWD, $–VPW

Outputs:

$–AAM, $–APB, $–BOD,$–BWC,$–GGA, $–GLL,

$–RMB,$–RMC,$–VTG, $–XTE, $–ZDA

Outputs for autopilot:

$–AAM, $–APB, $–BOD,$–VTG

15. Perspective View

On/off



POWER SUPPLY

10.5 to 35VDC, current drain



PHYSICAL

1. Size

228mm(H)X138mm(W)X79mm(D)

2. Weight

0.9kg

3. Display

5.6-inches ColorTFT day-view LCD 640 X 480 pixels

4. Waterproofing

Display unit: IPX5

Antenna unit: IPX6

5. Temperature range

Display unit: -15℃ to +55℃

Antenna unit: -25℃ to +70℃



GPS RECEIVER CHARACTERISTICS

1. Receiver

12 parallel channel GPS receiver continuously Tracks and uses up to 12 satellites to compute and update your position

2. Acquisition times

Cold start: 60 seconds average



Warm start: 45 seconds average

Hot start: 15 seconds average

3. Update rate

1/second,continuous

4. Accuracy

Position:

Velocity: 0.1 Meter/sec without S/A

Time: ±100ns synchronized to GPS time

5. Dynamics

Altitude: 18,000m Max



Velocity: 500 m/s

Acceleration: 4g Max

6. Datum

WGS 84 & Others

7. Interfaces

NMEA 0183 input and output,RS232 and RS422 output

8. Antenna

KA07

AIS INTERFACE

1. Data input

NMEA 0183 , R8232

2. Baud rate

38400 and 4800
